起源の場所:
中国
ブランド名:
WENYAO
証明:
CE ISO9001
モデル番号:
WYCS3-192
私達に連絡しなさい

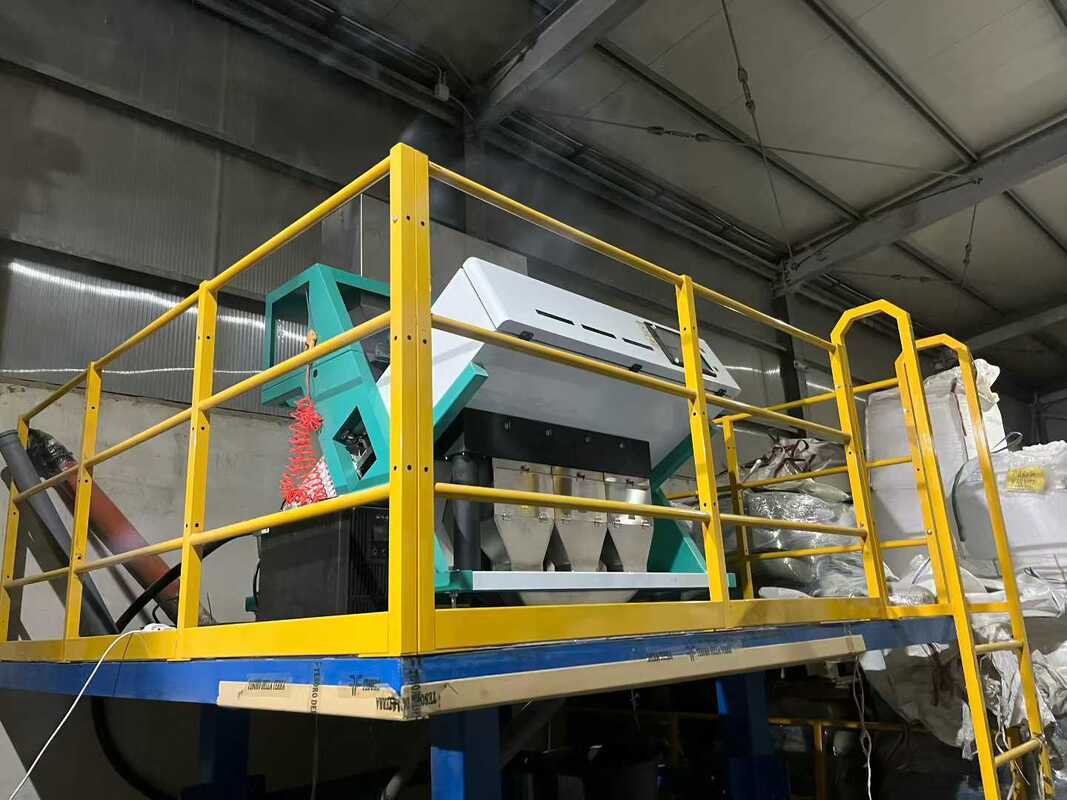

Wenyao High Quality Small Color Sorter Walnut Color Sorting Machine Almond Hazelnuts Color Sorter
Technical Parameters:
| MODEL | WYCS3-192 |
| Chutes/Channels | 3-192 |
| Throughput(t/h) | 500 kg /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1600w |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 800-1800 L/Min |
| Weight | 600kg |
| Dimension(L*W*H) | 1620*1535*1832mm |
Examples of color sorting:
Key Features & Benefits
· Comprehensive Defect Removal: Specifically engineered to identify and remove:
· Shell Fragments & Husk: Even small pieces of shell that compromise food safety and texture.
· Moldy & Rancid Kernels: Discolored, shriveled, or rotten nuts that affect flavor and may carry aflatoxins.
· Insect-Damaged Kernels: Nuts with exit holes or internal damage.
· Burnt or Over-Roasted: For roasted nut applications, removes charred or unevenly roasted pieces.
· Foreign Material: Sticks, stones, glass, and other harvest debris.
· Advanced Aflatoxin Risk Reduction: By utilizing Infrared (IR) Technology, the sorter can detect mold and fungal growth on kernels that may appear normal to standard color cameras. This is a critical step for compliance with strict international food safety regulations (e.g., EU, US FDA).
· Gentle Handling Design: Hazelnuts are prone to breakage and oil smearing. Our machine features a specialized chute and air ejection system that minimizes impact, preserving the integrity and quality of the whole kernel.
· High Resolution, High Yield: Ultra-high-definition sensors allow for precise sorting, meaning you only reject truly defective nuts, maximizing your usable yield and profitability.
· Easy-to-Clean & Hygienic: Built with food-grade materials and a design that allows for quick access and cleaning to prevent oil buildup and cross-contamination between batches.
The system operates on the following principle:
1. Feeding & Alignment: Bulk pepper seeds are elevated and fed onto a vibrating chute or belt, which spreads them into a single, uniform layer to ensure each seed can be individually inspected.
2. Optical Scanning: The aligned seeds free-fall past a high-resolution, high-speed optical scanning chamber. This chamber is equipped with:
· Full-Spectrum LED Lights: Provide consistent, glare-free illumination to highlight color differences.
· Advanced CCD/CMOS Cameras: Capture detailed images of each seed from multiple angles.
3. Real-Time Data Processing: A sophisticated computer processing unit analyzes the captured images in milliseconds. It compares the color, shape, and sometimes spectral characteristics of each seed against user-defined acceptance parameters. Seeds that are discolored, moldy, immature, or mechanically damaged are identified as rejects.
4. Precision Ejection: Upon identification, the system sends a signal to an array of high-speed, solenoid-controlled air jets. These jets emit a precise puff of compressed air to knock the defective seed out of the product stream without physically touching it.
5. Separation & Collection: The ejected defective seeds are diverted into a reject channel, while the accepted, high-quality pepper seeds continue their natural trajectory into the "good product" collection hopper.
