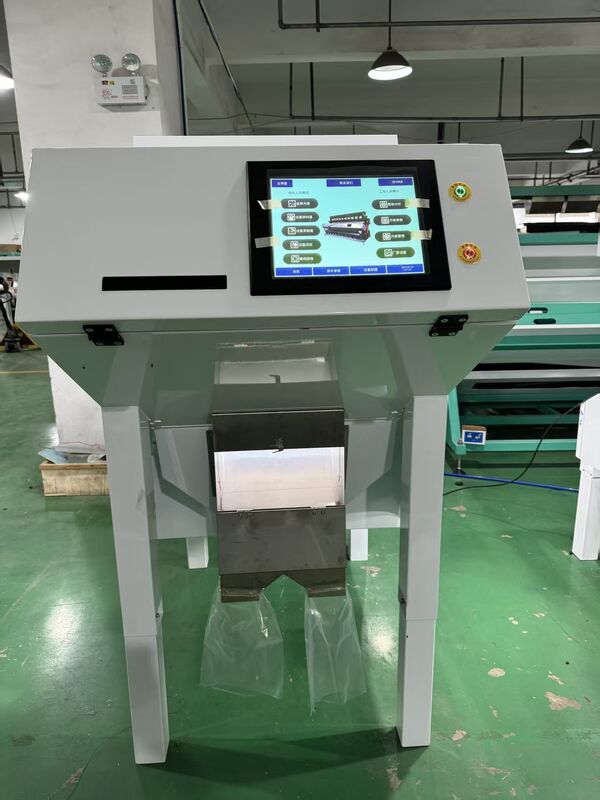

High Quality Wenyao AI Coffee Bean Coffee Cherries Color Sorter Green Bean Roasted Arabica color sorting machine
A coffee bean color sorter (or optical sorter) is an automated machine that uses advanced photoelectric sensors and cameras to instantly identify and eject defective coffee beans from a batch. It operates at high speeds using pneumatic valves to blast out impurities, ensuring perfectly consistent roasts and higher quality
Technic Parameter
| MODEL | WYCS1-64 |
| Chutes(channels) | 1(64) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥30:1 |
| Output(kg/h) | 1000 |
| Voltage | 180-240V/50Hz/60hz |
| Power supply(kw) | 0.9 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 200-600 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 800*1556*1274 |
| Weight(kgs) | 280 |
| Package | plywood case |
| Package Size mm | 1040*1660*1540 |
How the Sorting Process Works
The machine processes beans in four primary stages to ensure precision:
Feeding: Beans flow uniformly from a hopper down a slide/chute.
Imaging: High-resolution optical cameras or sensors capture real-time, 360-degree images of the beans in flight.
Analysis: The machine's processor compares each bean against a reference baseline or AI-driven parameters to detect color, size, or shape defects.
Ejection: Compressed air jets instantly fire to blow the defective or discolored beans into a separate reject bin
Examples of color sorting:
Our color sorter is widely used in various industries, including agriculture, food processing, recycling, mining, and more. It can handle a wide range of materials, from grains and nuts to plastics and ores.
From Customer's Site:
Certificate :
Packing And Delivery :
Why Choose Wenyao Color Sorter?
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
